Can You Build a $7,000 Motorized Projector Cabinet for Around $700?

Motorized UST projector cabinets can run about $7,000. Here is how I designed and built one around an AWOL motorized tray for around $700, and what I'd change.

September 15, 2026 8 min read Nick Wilbur

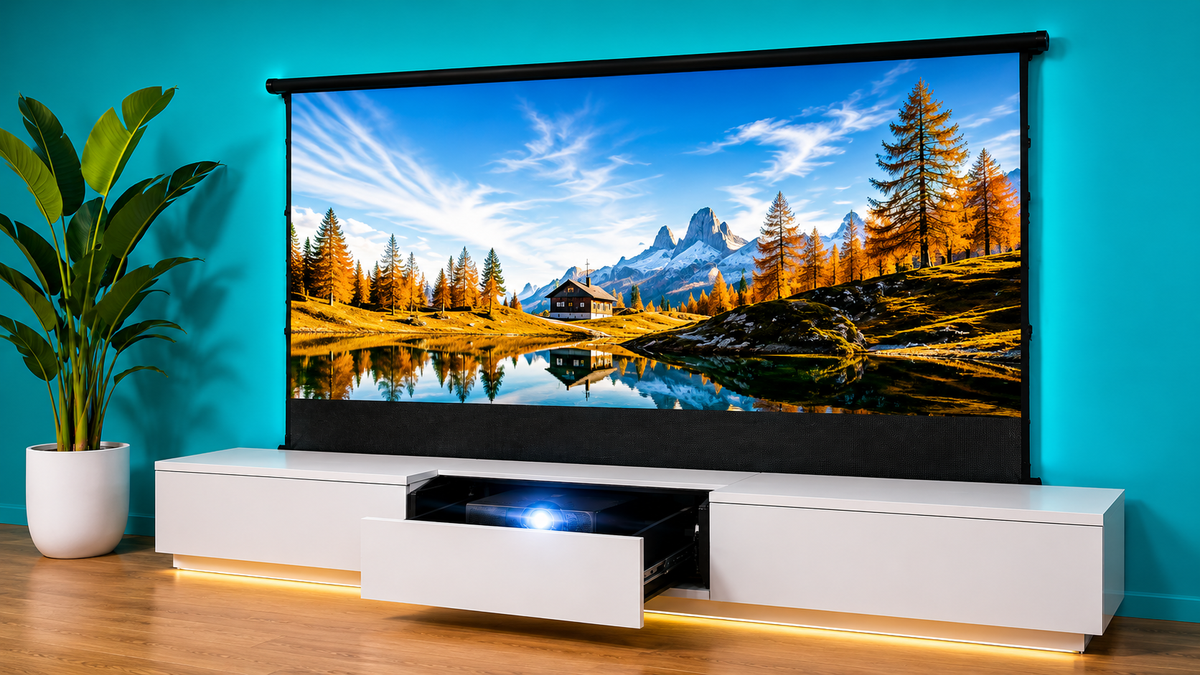

DIY white media cabinet with a motorized drawer holding an ultra-short-throw projector beneath a tensioned screen

Motorized ultra-short-throw projector cabinets solve a real problem: they hide the projector and screen when you are not using them. They can also cost several thousand dollars. After my friend George saw the price of the cabinet he wanted, I designed our own version in CAD, drove eight hours to his house, and gave us two days to see how close we could get to the same idea for roughly $700 in cabinet-related materials and hardware.

AWOL provided only the motorized tray, for me to experiment with. This video was not sponsored, and there was no guarantee the project would even work.

Some links on this page are affiliate links. TOID may earn a commission if you purchase through them, at no additional cost to you. As an Amazon Associate I earn from qualifying purchases.

This article is not a cut-by-cut transcript of the video. It is the useful part of the experiment: what a hidden UST cabinet actually has to do, where the design gets difficult, which components matter, and what I would think about before building another one.

Watch the video · 17 min

Watch the real two-day build

The written guide below explains the decisions behind the project and the lessons that apply to other UST cabinets. The video is where you can see the actual build unfold, including the time pressure, adjustments, and finished reveal.

George saw the price tag

The project started because George liked the motorized cabinet in my room. It gives you the visual impact of a giant projector image without leaving a projector, screen, and pile of electronics dominating the room all day. When the system is off, the projector can disappear into furniture and the screen can retract. For a multipurpose living room, that is a very appealing idea.

The problem was price. The commercial solution George was considering landed in the roughly $5,000–$7,000 range depending on configuration. At that point the question stopped being “which cabinet should we buy?” and became “how much of this can we reproduce ourselves?” I spent weeks modeling the cabinet in CAD before the trip, but that only proved the parts could fit on a computer screen. We still had to turn it into real furniture, integrate a moving projector tray and a floor-rising screen, and make the geometry repeat every time.

That distinction matters because a UST cabinet is not simply a media console with a hole cut in the top. It is furniture wrapped around a precision optical system. If the projector rises to the wrong height or stops in a slightly different position, the image can move on the screen. If the cabinet is too tight, cables can bind or airflow can suffer. The woodworking matters, but the mechanical and optical relationships are what make the idea succeed or fail.

DIY motorized UST projector cabinet build with an AWOL projector tray
The two-day projector cabinet build.

Cheaper, not effortless

Yes, you can save a lot by building the cabinet, but you are trading money for design work, labor, and risk. Our roughly $700 challenge was about recreating the cabinet and motorized installation concept, not purchasing the projector and screen themselves. Those are separate home-theater components you would need either way.

The DIY route makes the most sense if you are comfortable measuring carefully, building furniture, and solving fitment issues as you go. If you want a finished piece delivered with the engineering, finish work, warranty, and integration already solved, the premium on a commercial cabinet starts to make more sense.

Where the $7,000 goes

It is easy to look at a finished cabinet and think the price is mostly paying for wood. It is not. A polished commercial unit combines furniture construction, finishing, moving hardware, electrical integration, cable management, ventilation, and the engineering required to make a UST projector land in the correct position every time. Large furniture is also expensive to package, ship, and support after the sale.

The DIY path removes a lot of those costs because you become the designer, fabricator, installer, and troubleshooter. That is where most of the savings come from. It does not mean a homemade cabinet and a commercial product are identical offerings; it means you can sometimes reproduce the result you care about without paying someone else to solve every part of the problem for you.

That is also why I would not compare our roughly $700 cabinet target directly with the total price of a projector-and-screen system. The AWOL Aetherion Max and the 120-inch floor-rising screen are home-theater purchases on their own. The challenge was whether the furniture and motorized integration had to cost thousands of dollars.

Measure the light before the lumber

With a normal long-throw projector you can often move the projector several inches and correct the image with lens adjustments. An ultra-short-throw projector is much less forgiving because it sits extremely close to the screen. Small changes in height or distance can produce surprisingly large changes at the image. That means you should work backward from the final screen size and projector position before deciding how deep or tall the furniture should be.

The first measurement I care about is the projector’s actual working position: where does the chassis need to sit for the image to land correctly on the screen? From there, the tray opening, top surface, cabinet depth, and internal framing can be designed around the projector instead of hoping the projector fits a cabinet that was already built.

Physical size matters too. AWOL lists the Aetherion chassis at about 22.1 inches wide, 12.7 inches deep, and 5.5 inches tall. Those numbers are only the starting envelope. You still need room for connectors, cable bends, the tray itself, and safe movement. A tight CAD model may look elegant, but real hardware needs tolerance.

A tray is not a lift

The tray does not merely have to move. It has to move to the same useful position every time. For a UST projector, repeatability is the whole point. If the tray stops a little farther forward, backward, higher, or lower, you may see the image shift at the screen even though nothing else changed.

It also has to move at all. The first time we powered ours up, we could hear the gears trying, but the front wasn’t going anywhere. Weight turned out not to be the problem: we had let the cabinet front rest directly on the sides it was supposed to slide across.

You also have to design for everything attached to the projector while it moves. Power and HDMI cables need enough slack to travel without getting pinched, but not so much slack that they can fall into the mechanism. Connectors need clearance at the rear of the chassis. This is where something as unexciting as a 90-degree HDMI adapter can solve a real mechanical problem by reducing the space required for the cable bend.

The screen adds a second moving system. The screen material and housing need their own clear path, and the projector cannot interfere with that path in either its stored or operating position. The cleaner you want the finished furniture to look, the more carefully those hidden clearances have to be planned. Tying it together is simpler than it sounds: the USB triggers from the screen and the tray connect to the projector, so turning the projector on raises the screen and brings the tray out. You just set how far each one travels.

Let it breathe

A hidden projector is still a projector. It creates heat, pulls in cooling air, exhausts warm air, and eventually you will want to reach its ports or remove it. Hiding the equipment should not mean sealing it inside a box. Before closing a cabinet design, check the projector’s intake and exhaust locations and make sure the surrounding structure is not blocking them.

Two days, eight hours from home

The first lesson was that CAD is valuable, but CAD is not reality. Modeling the cabinet before an eight-hour drive gave us a huge head start because we were not inventing every dimension in George’s shop. It let me think through the broad relationships between the projector, tray, screen, and furniture before the clock started.

The second lesson was to avoid designing right to the limit. Real wood has thickness variation. Hardware needs tolerance. Cables do not bend at zero radius. Even the cutting can surprise you: a batch of parts we had spent the morning cutting came out the wrong size, and it took some detective work to find out why. A mechanism that clears by a fraction of an inch in software may be miserable to assemble in real life. A few strategic areas of extra space are usually worth more than making every internal dimension look perfect on paper.

Finally, I would pre-stage as much of the electronics and moving hardware as possible before beginning the furniture build. When the deadline is two days, the expensive time is not usually cutting a board. It is discovering that two systems you assumed would cooperate actually want the same inch of space.

The $700 verdict

In the end, George spent about $700 to build his dream cabinet, about a tenth of the $5,000 to $7,000 other options can cost. It isn’t perfect: he used a little keystone to get the image exactly where he wanted it, and the paint job definitely isn’t professional. But when the tray came up and the screen rose, he absolutely loved the picture.

If your goal is to get a clean disappearing-projector setup for the lowest possible cost, DIY can make a lot of sense. The savings can be substantial because you are replacing a finished furniture product with your own design time and labor. You also get to size and finish the cabinet around your exact room instead of adapting the room to somebody else’s furniture.

I would not recommend it to everyone. A UST projector is sensitive to placement, and motorized hardware introduces another layer of failure points. If you hate woodworking, do not want to troubleshoot, or need the finish quality of professionally manufactured furniture, buying a cabinet may be the smarter use of your time.

For me, the project answered the question we started with: you do not necessarily have to spend what the market says to get the result you want. But the money you save does not come from magic. It comes from taking on the work yourself. The video shows what that trade actually looked like over our two-day build.

Finishing the rest of the room? The Presence 10 plans cover surround and height speakers for wall- or ceiling-mounted placement, and all of my DIY home theater speaker plans are in one place.

Watch the full build on YouTube

Parts Used and Mentioned

These are the main off-the-shelf components in our build. The projector and screen are home-theater purchases on their own, outside the roughly $700 cabinet budget. Prices change, check the current price.

Some links below are affiliate links. Toid may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases.

Item Used or mentioned Link
AWOL Motorized Projector Tray Used, provided by AWOL. Raises and lowers the UST projector and, most importantly, needs to return it to a repeatable viewing position. Amazon
AWOL Aetherion Max Used. The ultra-short-throw projector in the finished system. Its physical size and required optical position drive much of the cabinet layout. Amazon
120" AWOL Floor-Rising Screen Used. Lets the screen disappear when the room is not being used as a theater, and has to be integrated with the cabinet opening and projector position. Amazon
90° HDMI adapter Used. A small part that saves clearance behind the projector and reduces the bend and strain on the HDMI connection. Amazon
