DSP vs Passive Crossover: Which Is Better for DIY Speakers?

The HiVi speakers had reached the point where the existing passive crossover was not giving me the result I wanted, and I had a very real deadline: four hours to get the project moving in the right direction or the speakers were going away. That changed the engineering decision.

A passive crossover is not inherently slow or inferior, but developing one is a physical process. You measure, choose component values, assemble or modify the network, measure again, listen, and then repeat. If a crossover point, level, or slope is wrong, the next experiment can mean changing capacitors, inductors, or resistors before you even know whether the idea is better.

DSP moves much of that iteration into software. With each driver on its own amplifier channel, crossover frequency, slope, level, equalization, and delay can be adjusted without rebuilding a passive network. Under a four-hour deadline, that was not a small convenience—it was the difference between trying several ideas and potentially spending the entire window soldering.

A passive crossover sits between a power amplifier and the speaker drivers. Capacitors, inductors, and resistors divide the amplified signal into the frequency ranges each driver should reproduce. The big advantage is simplicity for the finished user: one amplifier channel can feed the entire speaker through one passive network.

An active DSP crossover works earlier in the signal chain. The audio is divided and processed before the individual drivers are amplified, so each driver or driver section needs its own amplifier channel. Instead of changing an inductor or capacitor to move a crossover point, you change a filter parameter in software.

That architectural difference explains most of the trade-offs. Passive networks are elegant once they are finished, but changes require physical parts and the amplifier “sees” the combined electrical load of the speaker and network. DSP gives the designer direct control over each driver, but the system requires more channels of amplification, more wiring, and a DSP platform that has to remain part of the finished speaker system.

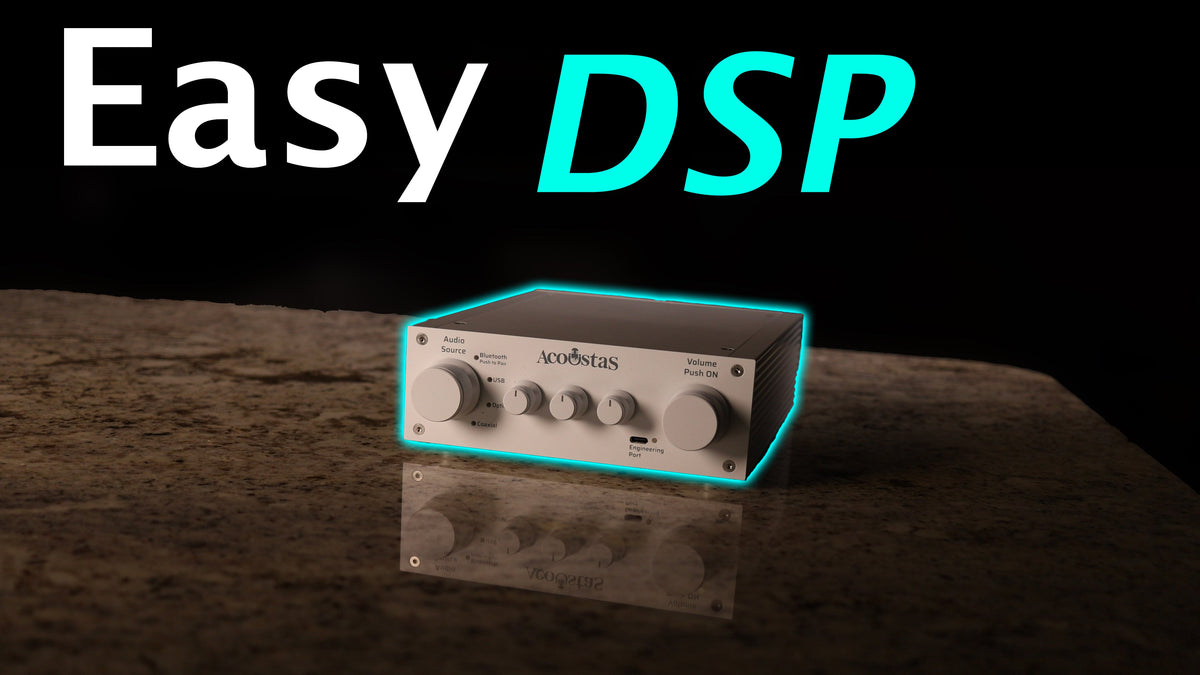

The AC650 combined two things I needed under the deadline: multichannel amplification and a DSP platform that could be adjusted quickly. Acoustas specifies six powered channels, plus additional line outputs, with control through its AirDSP software over Wi-Fi. That is enough powered channels for a stereo active three-way system without needing a separate amplifier for every driver section.

The important part for this experiment was not simply that it had EQ. The platform allows high-pass and low-pass crossover filters, multiple slope families, per-channel level and delay, parametric EQ, presets, and FIR-capable profiles. I did not need every feature to solve the HiVi problem, but having those tools available meant the crossover stopped being a fixed circuit board and became something we could iterate in real time.

That changes how you think while designing. If a crossover point looks suspicious in the measurement, you can move it and immediately test whether the response, phase relationship, or listening result improves. You can save two approaches and A/B them instead of relying on memory. Under normal development that saves time; under a four-hour deadline it completely changes what is possible.

DSP makes it easy to change things, which also makes it easy to change the wrong thing. Without measurements, you can spend an hour “fixing” a dip that is actually caused by microphone position, room interaction, or driver cancellation. The faster your tools become, the more important it is to know what problem you are trying to solve.

That is where OmniMic was critical. We could look at the individual drivers and the combined response, make a controlled change, and then measure again. The basic loop was simple: measure → identify a problem → change one thing → remeasure → listen. That is much more reliable than stacking EQ until the curve looks different.

I still care about listening. A measurement system does not tell you whether you enjoy the speaker. What it does is give you a way to separate “I think I heard something” from an actual response, crossover, or integration problem. For loudspeaker development, that saves an enormous amount of time.

After this project, these are the advantages that stood out to me most:

• Fast iteration: crossover points, slopes, level, EQ, and delay can be changed without rebuilding hardware.
• Driver-by-driver control: each driver can be measured and corrected independently before the system is combined.
• Easy A/B testing: presets make it much easier to compare two tuning ideas without trusting short-term memory.
• Powerful correction tools: problems that would require a complicated passive network can sometimes be handled much more directly in DSP.
• Excellent for development: even if the final product will be passive, DSP can help you learn where the crossover wants to be before committing to parts.

The disadvantages are real too:

• More amplifier channels: an active speaker generally needs amplification for each driver section.
• More system complexity: DSP hardware, software, routing, power, and configuration become part of the speaker.
• More things to troubleshoot: a passive network has no firmware, Wi-Fi connection, preset, or software state to worry about.
• Less universal: a passive speaker can usually be connected to almost any appropriate stereo amplifier. An active DSP design is more dependent on the specific electronics around it.

That is why I do not see DSP as a universal upgrade. It is a different system architecture with a different set of strengths.

DSP can fix a lot of response and integration problems, but it cannot repeal physics. It can change frequency response, crossover behavior, level, timing, and phase relationships within the capabilities of the processor. It cannot turn a driver with high distortion into a low-distortion driver, make a tweeter play safely below its mechanical limits, or erase poor directivity created by driver size and spacing.

It also cannot make unlimited output from a system with limited amplifier power or excursion. Boosting a deep bass null by 12 dB in software does not create free headroom—it asks the amplifier and driver for dramatically more output. A good DSP design still has to respect the drivers, enclosure, listening distance, and acoustic behavior of the speaker.

That matters in the HiVi project because the goal was not to use DSP as a magic repair button. The goal was to use measurement and control to get the existing drivers working together more effectively, quickly enough to make an informed decision before the deadline.

If I am designing a conventional speaker that I want somebody to connect to a normal AVR or stereo amplifier and forget about, passive still has a huge appeal. Once the crossover is properly engineered, the complexity is hidden inside the cabinet. There is no app to configure, no extra amplifier channel to assign, and no DSP preset to lose.

Passive can also make more sense when the speaker is intended for a wide range of owners. A DIY plan built around a passive crossover is easier to reproduce because the builder does not have to own the exact DSP amplifier I used or understand how to load and manage a specific configuration.

The downside is development time. A sophisticated passive crossover can take many iterations, and every iteration involves actual components. That is why I now see DSP and passive less as rival philosophies and more as tools for different stages and goals.

For a time-crunched development project like the HiVi rescue, I would choose DSP again without hesitation. It gave us the ability to diagnose and test changes fast enough that the four-hour deadline was realistic. The AC650 made the active architecture relatively compact, and OmniMic gave us the feedback loop needed to use that flexibility intelligently.

For every finished speaker I build from now on? No. If simplicity, amplifier compatibility, and long-term plug-and-play ownership are the priorities, I still like passive designs. If rapid development, fine control, easy experimentation, or an active speaker architecture are the priorities, DSP is difficult to beat.

The biggest thing I learned is that the right question is not “which technology is better?” It is “which set of compromises fits this speaker?” In this project, DSP fit the problem extremely well. The video shows what that looked like when the clock was actually running.
